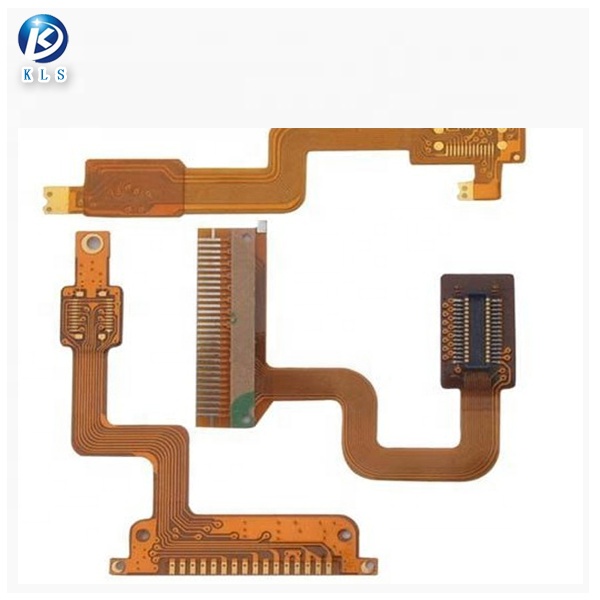

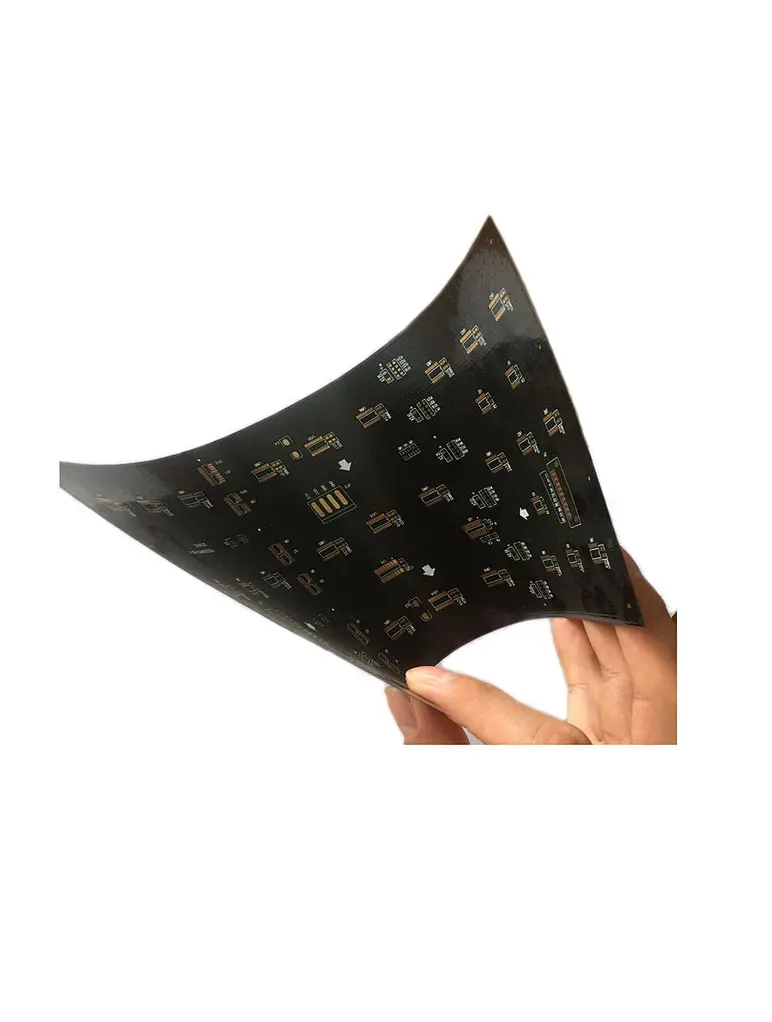

Flexible PCB

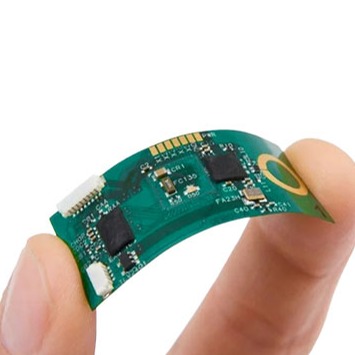

Flexible Printed Circuit (FPC), also known as flexible pcb, is favored for its light weight, thin thickness, free bending and folding and other excellent characteristics...
characteristic:
1. Short: short assembly hours
All lines are configured, eliminating the need to connect extra cables
2. Small: smaller than PCB
Can effectively reduce the volume of the product and increase the convenience of carrying
3. Light: lighter than PCB (rigid board)
Can reduce the weight of the final product
4. Thin: thickness is thinner than PCB
Can improve flexibility. Strengthen the assembly of three-dimensional space in a limited space
Flexible PCB Specification：
| Layer | 1-32 layers |
|---|---|
| Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum |
| Board Thickness | 0.2mm-7mm |
| Max. Finished Board Size | 500mm*500mm |
| Min. Drilled Hole size | 0.25mm |
| Min. Line Width | 0.075mm(3mil) |
| Min. Line Spacing | 0.075mm(3mil) |
| Surface Finish/Treatment | HALS/HALS lead-free, Chemical tin, Chemical Gold, Immersion gold Immersion |
| Copper Thickness | 0.5-4.0oz |
| Solder Mask Color | green/black/white/red/blue/yellow |
| Hole Tolerance | PTH: ±0.075, NTPH: ±0.05 |
Custom pcb fpc rigid flexible pcb from design to manufacture and assembly with factory price.
We are the professional pcb oem pcb flexible pcb double sided manufacturer,and have manufacturerd many kinds of goldplated flexible pcb for many company.
