We need to consider below factors when designing LED PCB Board:
Material: Base on difference requirement on heat dissipate and cost limitation, the material we can consider will have Aluminum, FR4, PI, and Ceramic. Materials used for the printed circuit board should work together to remove and dissipate extra heat, insulate conductors, and allow electrical connections between LED components.
Thermal management: Thermal management is one of the most crucial aspects of LED design. Besides material, we also can consider adding fans or heat sinks.
Trace Routing: Proper trace routing design prevents open and short circuits, crosstalk between circuits and manufacturing problems. Using the proper width of the traces prevents overheating.
Medical Industry
Aluminum LED PCB
PCBA For Airbag
PCBA Controller for Automotive Light

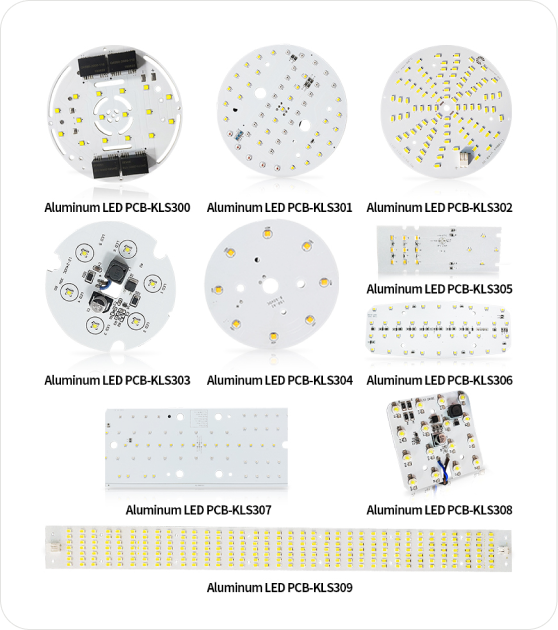

1. It has good heat dissipation function;
2. More suitable for LED patch processing technology;
3. Good mechanical endurance;
For us, as the professional PCB & PCBA manufacturer, we can do customized design, manufacture and assembly the LED PCB Board for customers.

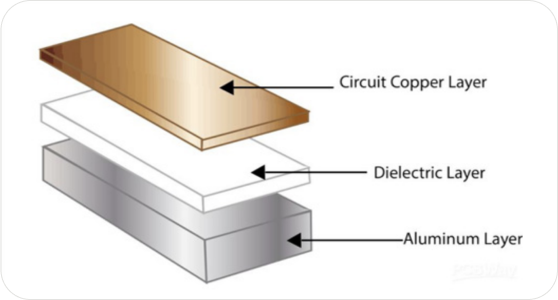

1. Aluminum PCB Structure: Circuit Copper Layer, Dielectric Layer and Aluminum Layer.
2. The Copper Thickness we can make from 1oz-12oz;
3. The Board Thickness we can make: 0.5mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,3.0mm;
4. Thermal Conductivity(w/mk) we can make: 1.0, 2.0, 3.0

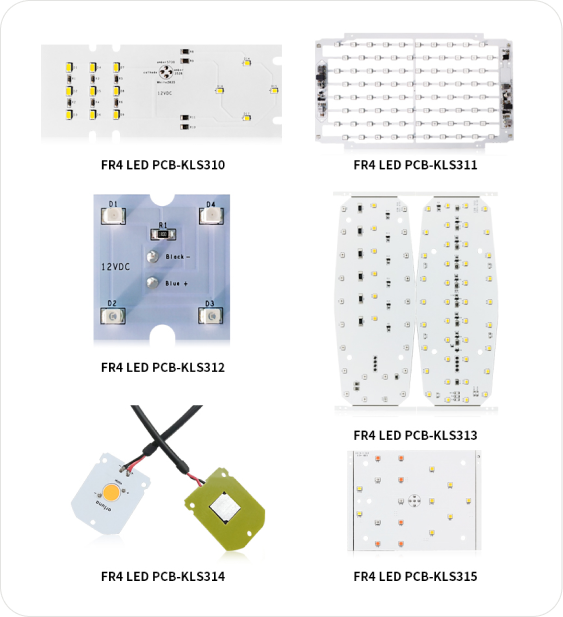

The Advantage of FR4 LED PCB:
1. Wide Applications: Compare to Aluminum LED PCB (normally one layer in design), FR4 LED PCB can be made up to 32 layers, so it can meet wide requirements.
2. Cost-effective: The cost is lower for FR4 materials when compared with other PCBs. And it also has lower processing costs.
3. Low moisture absorption: FR4 LED PCB has a low moisture absorption of 0.10%, which means that it has a great capability to resist water. So it is a perfect option for marine applications.
On the other side, it also have the disadvantage, but we can help you to select the suitalbe one according to your requirements, as we have more than 10 year experience and good engineers team, to help you from design & development, select most suitable components, manufacture and assembly.
Industry category
Medical Industry
FR4 LED PCB
Flexible LED PCB

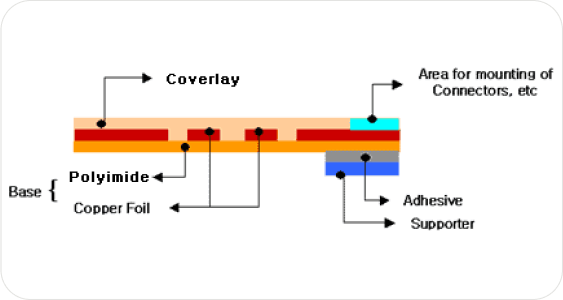

The Flexible LED PCB is the LED PCB was made by Flexible base material Ployimide (PI).
The most advantage of Flexible LED PCB is that it can change the shape, and also have less weight.Please feel free to let us know your requirements, we can do design for you, then manufacture for you, source the LED parts for you, and assembly & test good for you.
For High-power LED lighting products, it can consider to use Ceramic LED PCB, base on below advantages:
1. Large current-carrying capacity, 100A current continuously passes through board thickness 1mm copper thickness 0.3mm, the temperature rise is about 17℃; 100A current continuously passes through board thickness 2mm copper thickness 0.3mm, the temperature rise is only about 5℃;
2. Excellent heat dissipation performance, low thermal expansion coefficient, stable shape, not easy to deformation warping.
3. Good insulation, high voltage resistance, to protect personal safety and equipment.
4. Strong bonding, adopting bonding technology, the copper foil will not fall off.
5. High reliability, stable performance under high temperature and high humidity environment.
Please feel free to let us know your requirements, we can do design for you, then manufacture for you, source the LED parts for you, and assembly & test good for you.
Ceramic LED PCB
