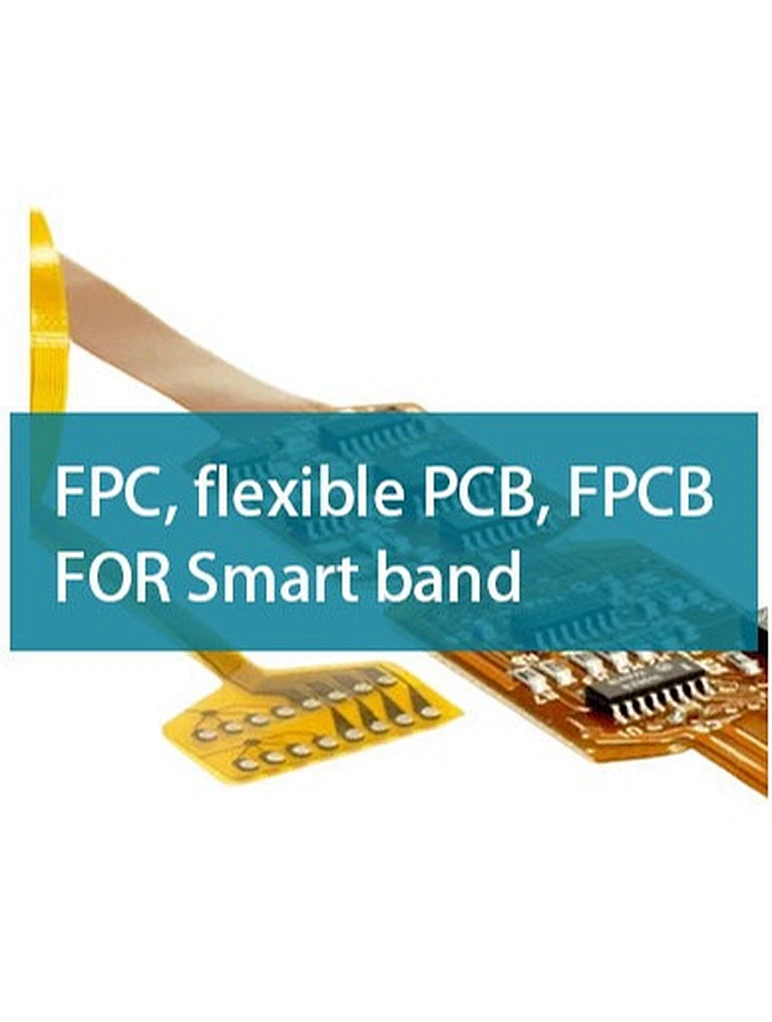

High-Performance Flexible PCB for Smart Bands & Medical Wearables
Precision-designed for high-quality smart fitness bands, health monitors, and wearable device technology
Are you developing a market-demanding smart bracelet or medical-grade wearable device? Our smart bracelet FPCs (Flexible Printed Circuit Boards) are designed to meet the requirements of modern smart wearables, combining the benefits of ultra-compact design, low-power efficiency and reliable durability. Whether you're building a smart fitness bracelet, a health monitoring smart bracelet or an AI-powered wearable device, our PCB solutions are well suited to meet your needs.
Why Choose Our Smart Band PCB?
1. Ultra-compact HDI design for space-constrained wearables
- High Density Interconnect (HDI) technology: Enables microvias, fine pitch BGA routing, and 4-6 layer stacking to maximize the component density of smart bracelets.
- Miniaturized footprint: Optimized for 0201/0402 passives and QFN packages to ensure compatibility with compact sensors (heart rate, oximetry, GPS).
- Rigid-Flexible Hybrid Solution: Combines a rigid section for component mounting with a flexible area for bendable or flexable fitness bands.
2. Low-Power Optimization for Extended Battery Life
- Energy-efficient architecture: Integrated power management integrated circuit (PMIC) and dynamic sleep/wake algorithms reduce standby power consumption.
- Sensor-specific power rails: Dedicated voltage regulation for sensors, such as optical heart rate modules, minimizes wasted energy.
- RoHS and REACH compliance: Lead-free materials and processes ensure compliance with environmental requirements in global markets.
3. Medical-Grade Accuracy with Enhanced Signal Integrity
- EMI shielding: Grounded copper pour and shielded tank protect sensitive analog signals (e.g. ECG, blood pressure sensor) from RF interference.
- Impedance matching: The accuracy of the Bluetooth/Wi-Fi module is 50Ω marks, which ensures stable wireless communication in the smart fitness bracelet.
- Calibration-friendly layout: Test points for factory calibration of health sensors, which are critical to FDA-certified medical wearable PCBs.
4. Durability for Active Lifestyles
- Flexible polyimide substrate: Bending, twisting and thermal stress of smart belts used in sports or outdoor environments.
- IP68 Ready Design: Conformal paint and sealed shell support the waterproof rating of the fitness bracelet.
- Thermal Management: Thermal VIA and high-TG FR4 materials emit heat from PMIC and wireless charging coils.
Applications of Our Smart Band PCB
- Health monitoring equipment: including blood oxygen, heart rate, sleep and stress level assessment.
- Exercise and fitness tracking: built-in GPS, step count and calorie consumption calculations.
- Medical wearable devices: used to remotely monitor patients' ECG and blood sugar, providing clinical-grade diagnosis.
- AI smart bracelet: conducts real-time data analysis to provide personalized health insights.
Technical Specifications
| Feature | Details |
| Material | Polymide,High-Tg FR4 |
| Layers | 4-6 Layers(customized) |
| Min Trace Width | 3-5mils（HDI technology) |
| Surface Finish | ENIG,Immersion Silver |
| Certifications | RoHS,REACH,ISO9001,ISO13485 |
| Customization | Rigid-Flex,Blind/Buried Vias |
Global Client Success Stories
Case Study 1: Fitness Brands
- Challenge: Develop a waterproof smart bracelet PCB that supports dual Bluetooth and Wi-Fi connections.
- Solution:Design a rigid rotating PCB with EMI shielding and IP68 grade conformal coating.
- Results: Minimize the size of the smart bracelet and increase the battery life by 30%, up to 14 days.
Case Study 2: Medical Equipment Manufacturers
- Challenge:Design PCB for FDA certified health monitoring smart bracelets.
- Solution: Sensor calibration layout with medical-grade signal integrity.
- Results:99.8% accuracy of ECG and SPO₂ data measurement was achieved.
Request a Free Sample or Custom Quote
Looking for a custom PCB for your smart fitness bracelet or medical wearable?
