Choosing the Right PCB Substrate: A Comprehensive Guide for Electronics Manufacturing

author: Gloria

1. Rigid PCBs – Reliable & Cost-Effective for Most Devices

  • FR-4 (Fiberglass)

The industry standard. Excellent insulation, mechanical strength, and solderability. Ideal for home appliances, industrial controls, power supplies, and consumer electronics.

  • FR-2 / FR-2 Paper-Based

Low-cost, single-layer boards. Suitable for simple, budget-limited products like remote controls and basic chargers.

  • CEM-1 / CEM-3 (Composite)

Balance between cost and performance. Good for low-end appliance drivers and lighting controls.

  • High-TG FR-4 & Halogen-Free FR-4

High-TG FR-4 withstands lead-free soldering, ideal for automotive and multilayer boards. Halogen-free FR-4 meets EU environmental standards for battery and export products.

2. Flexible PCBs (FPC) – Lightweight & Bendable

  • Polyimide (PI)

High heat resistance and excellent flexibility. Used in smartphones, wearables, medical devices, and camera modules.

  • Polyester (PET)

Economical, lower heat tolerance. Suitable for simple keypad cables and low-cost connections.

3. Rigid-Flex PCBs – Best of Both Worlds

Combines rigid FR-4 and flexible PI sections in one board. No connectors needed. Ideal for military, high-end medical, and foldable electronics where reliability is critical.

4. Thermal Substrates – For High-Power Applications

  • Aluminum-Based

Excellent heat dissipation. Commonly used in LED lighting, power drivers, and MOSFET modules.

  • Copper-Based

Superior thermal conductivity for ultra-high-power devices like automotive headlights and industrial fast chargers.

  • Heavy Copper PCB

Thick copper foil for high current and heat. Used in EV chargers, energy storage, and industrial power supplies.

5. High-Performance Substrates – Specialized Applications

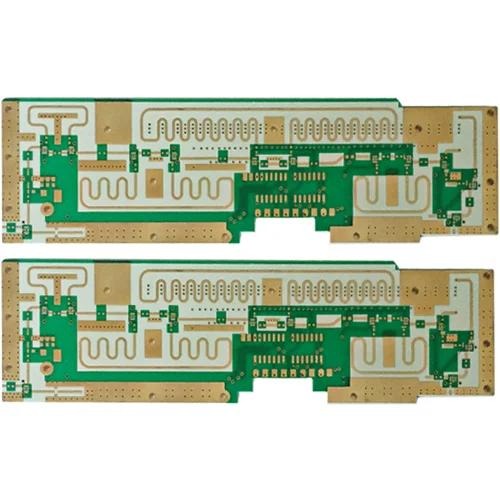

  • Rogers (High-Frequency)

Stable dielectric constant, low signal loss. Perfect for 5G antennas, RF devices, radar, and base stations.

  • Ceramic Substrate

High thermal conductivity, excellent insulation. Used in IGBT power modules, lasers, and semiconductor packaging.

  • BT Resin (IC Substrate)

Ultra-thin, high-precision. The core material for CPU, GPU, and memory chip packaging.

6.Quick Selection Tips

  • General electronics → FR-4 rigid board (best value)

  • Tight spaces / moving parts → Flexible PI board

  • High heat / high power → Aluminum or copper-based board

  • High-frequency / RF → Rogers or ceramic

  • Chip packaging → BT resin IC substrate
